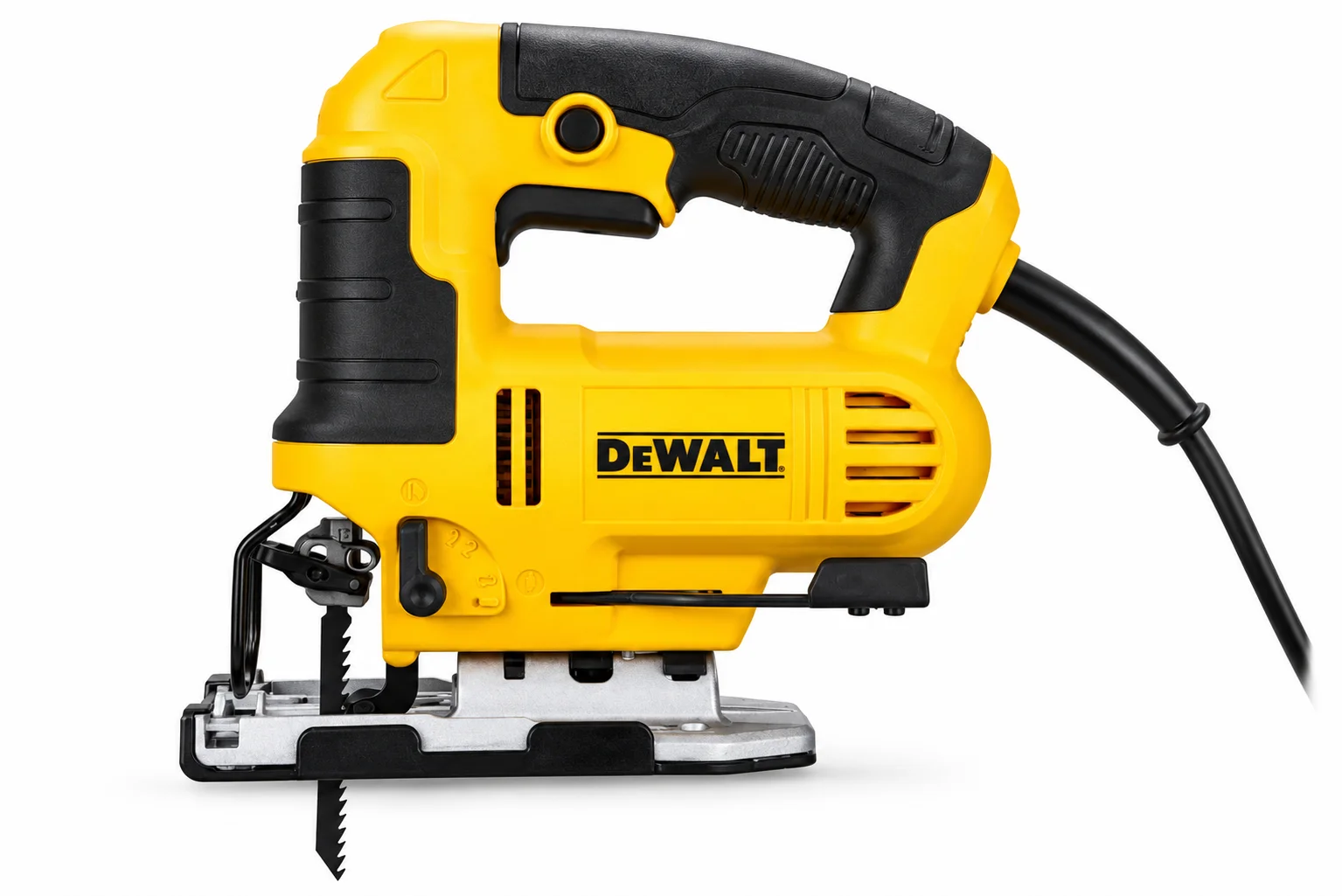

DeWalt DWE349 650W Jigsaw | Variable-Speed Cutting

Key Features

650W Motor: Provides power for a range of cutting applications involving suitable wood, aluminum, and steel workpieces.
Variable Speed Control: The 500–3,200 strokes-per-minute range helps users adjust cutting speed to suit the material, blade, and required finish.
20mm Stroke Length: Supports the blade's reciprocating cutting movement for controlled material removal during cutting operations.
Adjustable Bevel Shoe: Allows bevel cutting up to 45 degrees in either direction, helping produce angled edges and cuts.
Keyless Blade Change: Enables convenient blade replacement without requiring a separate tool for the blade clamp.
D-Handle with Rubber Grip: Supports handling and control while helping reduce vibration-related discomfort during operation.
Adjustable Cutting Action: The pendulum-action settings support a choice between faster cutting and more controlled cutting, depending on the material and finish required.

Highlights

Power Input: 650W
No-Load Stroke Rate: 500–3,200 SPM
Stroke Length: 20mm
Maximum Wood Cutting Depth: 85mm
Bevel Cutting: Up to 45°

Benefits

Versatile Material Cutting: Supports suitable cutting tasks in wood, aluminum, and steel when fitted with the correct blade.
Better Cutting Control: Variable-speed operation helps users adapt the stroke rate to the material and the complexity of the cut.
Supports Curved and Straight Cuts: The jigsaw format is useful for cutting patterns, curves, openings, and straight lines in suitable workpieces.
Angled Cutting Flexibility: The adjustable shoe supports bevel cuts up to 45 degrees for trim work, fabrication, and woodworking projects.
Convenient Blade Replacement: The keyless blade-change mechanism helps reduce setup time when changing compatible blades.
Comfortable Handling: The compact D-handle design and rubber grip support practical handling during workshop and job-site use.

Technical Specifications

Specification	Details
Brand	DeWalt
Model	DWE349
Product Type	D-Handle Jigsaw
Power Input	650W
No-Load Stroke Rate	500–3,200 SPM
Stroke Length	20mm
Maximum Cutting Depth — Wood	85mm
Maximum Cutting Depth — Aluminum	20mm
Maximum Cutting Depth — Steel	10mm
Bevel Capacity	Up to 45° left and right
Blade Change	Keyless
Speed Control	Variable speed
Power Source	Corded electric
Included Accessories	Confirm the supplied package

Usage Instructions

Always follow the manufacturer's instruction manual and use the appropriate blade for each application.

Inspect the Jigsaw: Check the power cord, base shoe, blade clamp, and blade for damage before use.
Choose the Correct Blade: Select a compatible blade designed for the material being cut.
Install the Blade Safely: Disconnect the tool from the power supply before installing or changing the blade, then verify that it is secured correctly.
Set the Speed: Adjust the speed according to the material, blade type, and required cutting finish.
Adjust the Base Shoe: Set the required bevel angle when angled cutting is needed and ensure the shoe is secured.
Secure the Workpiece: Clamp the material where practical and keep hands clear of the blade path.
Cut with Control: Allow the blade to reach operating speed before engaging the material. Wear suitable eye and hearing protection.
Disconnect After Use: Unplug the jigsaw before making adjustments, changing blades, or performing maintenance.

Why Choose Gulf Basic Trading

Trusted Product Sourcing: Access professional power tools from established brands.
Product-Focused Support: Get assistance identifying suitable cutting tools for your application.
Industrial Supply Solutions: Source tools for construction, woodworking, and fabrication requirements.
Saudi Arabia Supply Coverage: Enquire about delivery arrangements for your project location.
Enquiry Assistance: Contact our team to confirm pricing, availability, and package details.

Frequently Asked Questions

What is the DeWalt DWE349 jigsaw used for?

The DWE349 is a corded jigsaw for suitable straight, curved and angled cuts in materials such as wood, aluminium and steel when fitted with the correct blade.

What is the power rating and speed range of the DWE349?

The supplied product information lists a 650W power input and a variable stroke rate of 500–3,200 strokes per minute (SPM).

What is the stroke length of the DWE349?

The supplied product information specifies a 20mm stroke length. Check the manufacturer’s datasheet for the exact model variant.

Can the DWE349 make bevel cuts?

The supplied product details state that its adjustable base shoe supports bevel cuts up to 45 degrees. Set and secure the base according to the instruction manual.

Does the DWE349 have a keyless blade-change system?

The supplied product description identifies a keyless blade-change system. Confirm blade compatibility and follow the manufacturer’s instructions when changing blades.
